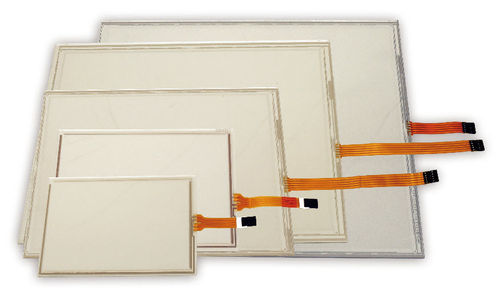

Touch Screen

Leading Manufacturer and Supplier from Bengaluru, our product range includes Touch Screen such as 4 Wire Resistive Touch Screen, 5 Wire Resistive Touch Screen, SAW Touch Screen, IR Multi Touch Screen, Touch Screen Panel, Capacitive Touch Screen and many more items.

Touch Screen

Touch Screen

We are among the eminent manufacturers and suppliers of  Touch Screen in the industry. The offered product have been designed with the application of latest technology and deliver optimum performance to the customers. Premium quality materials are procured from established vendors for manufacturing these product. We subject these product to tests based on multiple parameters to ensure that the desired quality standards are maintained.

Features:

Resistance against cracks
Scratch resistance
Longer service life

Additional Information:
Minimum Order Quantity: 1 Piece(s)

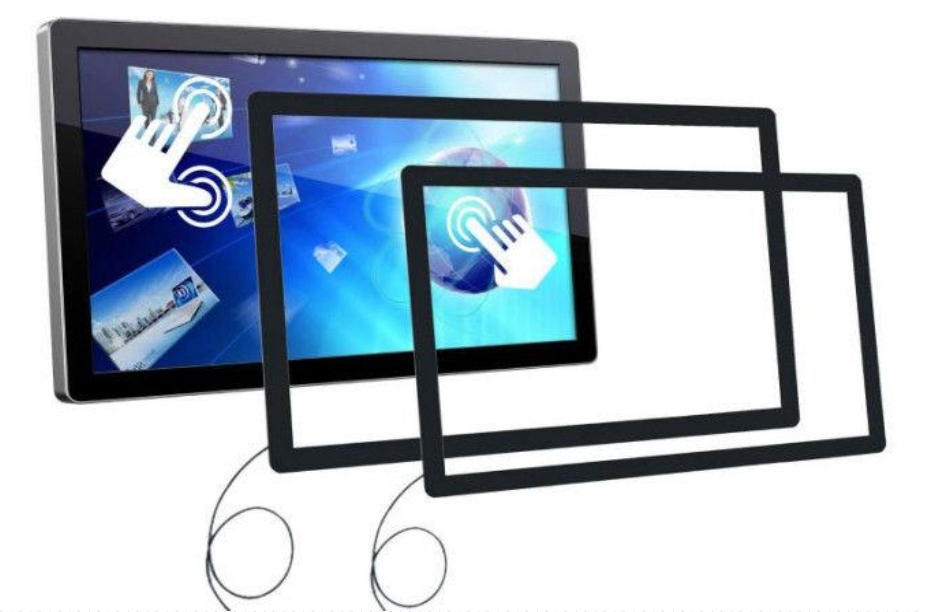

IR Multi Touch Screen

IR Multi Touch Screen

With support of our vendor’s excellent team workers, we have been delivering the best quality range of Information Kiosk. It is available in a variety of finishes and colors to creatively enhance any self-service venue. The offered range is procured from reliable vendors of the market. It is strictly checked on different quality parameters assuring its flawlessness at user’s end. In addition to this, clients can avail the offered range from us at market leading prices. Touchscreen kiosk manufacturers India, Touchscreen kiosk suppliers India, Information kiosk manufacturers India, Information kiosk suppliers India, Information kiosk, Self service kiosk, Android kiosk, Transactions kiosk.

Features:

Automatic operations
User-friendly
Low maintenance

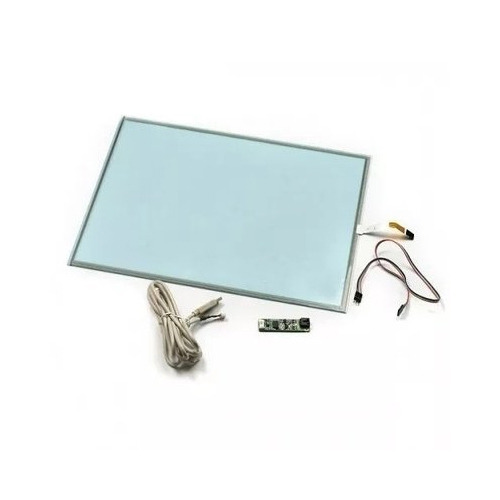

Touch Screen Panel

Touch Screen Panel

We provide wide range of touch screen for addressing & controlling process as per customer requirement for their machine. Touch Screen KIOSK, Touch Screen Monitor, Touch Screen Panels, Touch Screen Kiosk Suppliers, Kiosk Machine manufacturer and Suppliers - Chennai, Bangalore, Hyderabad, Cochin, India

Our company is appreciated for manufacturing, trading, exporting and wholesaling Touch Screen Panel PCs that are available in a variety of specification, range, etc to meet the demands of different types of our Customers.

Additional Information: Minimum Order Quantity:  1 Piece(s)


Projected Capacitive Touch Screen

Projected Capacitive Touch Screen

Specifications:

Additional Information:  Minimum Order Quantity:  1 Piece(s)

Item No.TTCT080002
TypeG+F+F
Thickness1.6 mm adjustable
Operating Voltage3.3 adjustable
Operating Current2.5 mA-10 mA Depends on IC
External Dimension154.06 * 204.06 mm
View Area Dimension122.86 * 163.32
Active Area Dimension121.86 * 162.32 mm
Sensitivity100±30 6 contact rod
InterfaceI2CUSB
Connection of TSP and ICCOF or COB
Transparency≥ 80% depends on the quantity of layers
Haze≤ 2.5% depends on the quantity of layers
Surface coatingAnti-FingerprintAnti-SmearyAnti-Reflection etc.
Storage Temperature-15℃~40℃ 90%RH40℃~70℃60%RH
Surface Hardness-20℃~40℃ 90%RH 40℃~70℃60%RH
Surface Hardness≥ 5H
TSP ESD Level100 000 000 Times
ApplicationMID,Tablet PC

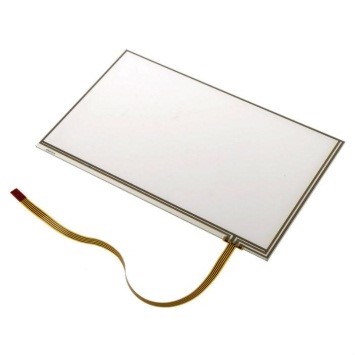

4 Wire Resistive Touch Screen

4 Wire Resistive Touch Screen

Remarked for our superior quality and on time delivery, we are the proud manufacturer, wholesaler, trader, retailer, supplier of  4 Wire Resistive Touch Screen.  Our provided touch screen is designed & developed by our experienced professionals utilizing the best grade electrical components & modernized technology as per the international standards. Offered touch screen is highly appreciated by our clients for its high transmission rate. Our customers can avail this touch screen from us at nominal rates. Touch Screen KIOSK, Touch Screen Monitor, Touch Screen Panels, Touch Screen Kiosk Suppliers, Kiosk Machine manufacturer and Suppliers - Chennai, Bangalore, Hyderabad, Cochin, India

Features:

Writing and Signature Capture Capability
Narrow Boarder Design
Precisely designed

Other Details:

Input Method: Stylus, Finger, Gloved Hand
Widest Range in Sizes: 1.4" ~ 21"
High Transmission Rate
Low Power Consumption
Narrow Boarder Design
Writing and Signature Capture Capability
Various Constructions Available:Film/Glass,Film/Strengthened Glass
Film/Film/PC
Sunlight Readability Available
Palm Rejection Model Available
RoHS Compliant
One Year Warranty

Specifications:

Electrical:

Operation Voltage DC5V
Linearity 1.5 % or less
Insulation ≥20 MΩ / 25 V (DC)

Optical:

Transmittance 81% ± 5%

Environmental:

Operating Temperature -10°C to +60°C
Storage Temperature -30°C to +75°C

Mechanical:

Activation Force ≤50 g
(Custom activation force and palm rejection available)

Durability:

Finger Touch 5M touches
Pen Hitting 1M touches
Surface Hardness ≥3H (JIS K5400)
Operating System:

Windows 98 / 2000 / ME / XP / NT / CE, DOS, Linux

Additional Information:


Minimum Order Quantity: 1 Piece(s)


5 Wire Resistive Touch Screen

5 Wire Resistive Touch Screen

To beat the competition and stand tall in the market, we have committed in delivering a high quality range of  5 Wire Resistive Touch Screen. Offered touch screen is well tested from our side on numerous parameters so as to deliver a defect free range to customers. This touch screen is developed by our highly experienced professionals using latest technology & top quality of electrical components. As well, our touch screen is comes in numerous customized options in accordance with the customer’s choice. Touchscreen kiosk manufacturers India, Touchscreen kiosk suppliers India, Information kiosk manufacturers India, Information kiosk suppliers India, Information kiosk, Self service kiosk, Android kiosk, Transactions kiosk.

Features:

Weather resistance
Long service life
Compact design

Specifications:

Structure: PET Film --- 188 ± 15% (T)
Glass: 1.8, 2.9 ± 10 % (T)
Connector: FFC tail, 5 pin, Pitch=2.54
Controller: Serial, USB
Sensor Sizes: 2.4" ~ 21.0", Custom sizes
Input Method: Finger, Gloved Finger or Stylus Pen
Touch Activation Force: Less than 110 grams
Film Surface Hardness: Meets pencil hardness 3H
Surface Durability: 10k times (250 gf, pen speed 100 ± 15 mm / sec)

Additional Information:


Minimum Order Quantity: 1 Piece(s)

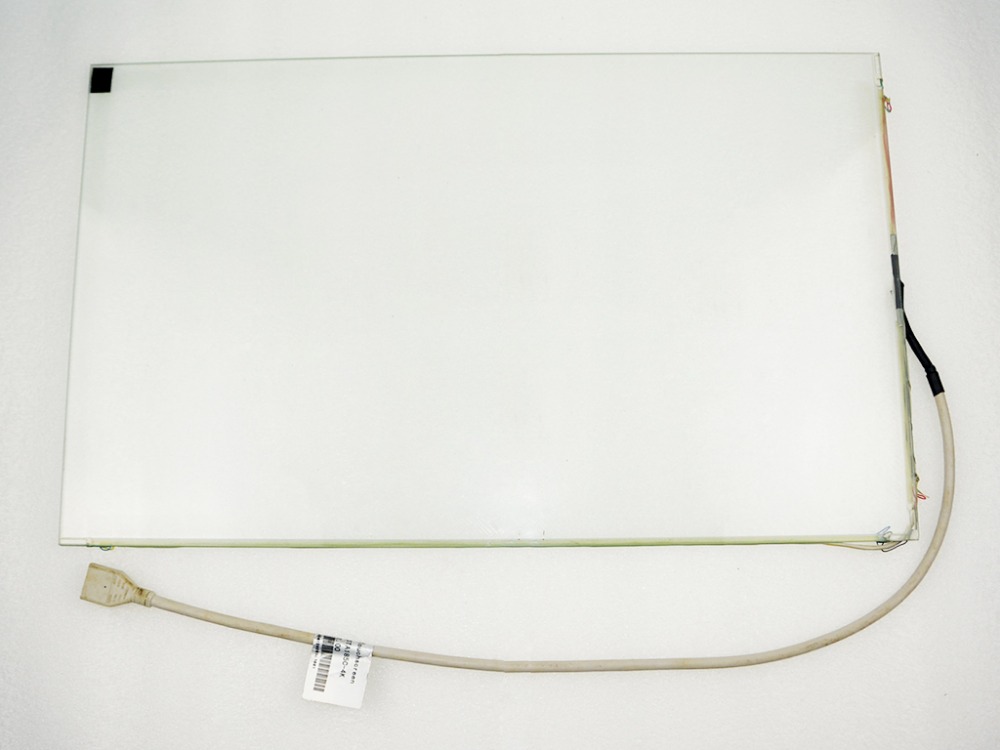

SAW Touch Screen

SAW Touch Screen

Being the topmost brand in industry, we are engaged in offering a superior quality range of  SAW Touch Screen.  Our given touch screen is known for its high durability and fine finish in the market. This touch screen is developed from the best electrical components and hi tech technology in accordance with universally verified standards. Also, our touch screen is tested on several provisions for delivering a flawless range to customer’s end.

Features:

Reliability
Effective
Easy to install

Specifications:

Touch Glass Option: anti-glare, vandal-proof
Operating temperature: -20ºC to + 60ºC
Storage temperature: -40ºC to + 70ºC
Touch Glass Option: anti-glare, vandal-proof
Operating temperature: -20ºC to + 60ºC
Storage temperature: -40ºC to + 70ºC

Additional Information:


Minimum Order Quantity: 1 Piece(s)

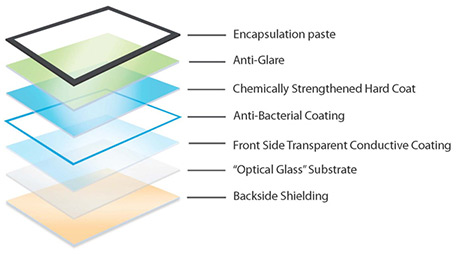

Capacitive Touch Screen

Capacitive Touch Screen

The capacitive touch panel consists of multilayer coatings on a glass panel. The layered structure is shown in figure 2. Transparent conductive coatings are coated on both sides of the glass panel. Specially designed electrodes are laid around the panel’s edge on top of the front-side conductive coating to evenly distribute a low voltage across the front-side conductive coating, creating a uniform electric field. The backside conductive coating is used for electromagnetic interference (EMI) shielding. A hard coat layer is laid on top of the front-side conductive coating to provide protection to the front-side conductive coating. The layered structure is optimized to provide extraordinary optical quality and durability.Touch ControllerThe controller measures the values of the current flow from the four corners and calculates the X, and Y coordinates of the touch location. The raw coordination data is further analyzed and compensated to give the optimized linearity accuracy. The controller utilizes its multi-point linearity compensation function to compensate non-uniformity of the panel. Each panel is calibrated in factory. Its compensation data is stored in EEPROM of the controller in pair with the panel and is used for linearity compensation. The compensated coordinates is then transmitted to the host computer through RS232 or USB interfaces.  Touch Screen KIOSK, Touch Screen Monitor, Touch Screen Panels, Touch Screen Kiosk Suppliers, Kiosk Machine manufacturer and Suppliers - Chennai, Bangalore, Hyderabad, Cochin, India

Capacitve Touch Screens & Integrated Touch Monitors are used for Public Access Kiosk, ATM applications etc.

With Superior specs. such as: surface scratch hardness of 9H, durability over 300 million touches life, high light transmission rate of 93%, narrow border for easy integration, compact size touch controller board designed to fit inside all LCD displays.

Widest range of Driver support - Windows Vista, 95, 98, ME, 2000, NT4, XP, CE, CE.net, (CPU: X86, ARM, V4/V4i, SH 3/4), Linux (RedHat 9.0, Mandrake 9.2, SuSE 9.0, Yellow Dog 3.x and Fedora Core 2), DOS, iMac (OS9/X), API supported.

Our Capacitive sensors are pin to pin compatible for drop in replacement with other brands and come with a 5 years warranty.SPECIFICATIONSCONTROLLEROperating Temperature : 0oC to 65oC degrees centigrade
Storage temperature : -40oC to 80 oC degrees centigrade
Humidity : 95% at 60 C Centigrade
Form Factor (W * L) : General size (62mm x 33mm )
Power Input : 5V for RS232 / USB
Driver : Windows 95/ 98/ ME/ NT4/ 2000/ XP/ XP Tablet PC Edition,
Windows CE 2.12/ 3.0/ .net/ 5.0, MS DOS, Linux(Kernel 2.6), iMac 9.0/OS X
ESD : Air 16KVA; Contact 8KVA (contact discharge to screen)
Regulatory : FCC B, CE
Seal Ability : Nema SealableSENSOR
Category : Capacitive
Controller Interface : RS-232/USB
Input Method : Finger
Avaliable Size : 6.4" to 21" Diagonal
Glass Thickness : 1.8mm/2.8mm (Glass only, not included tail connection)
Accuracy : 1.0% based on the diagonal dimension of the screen
Resolution : Max. to 2048 X 2048
Light Transmission : 92 2% per ASTM D1003
Operating Temperature : -15oC to 70oC
Storage Temperature : -40oC to 85oC
Humidity : MAX 90%RH(non-condensing) up to 60oC
Chemical Resistance : Resistance to chemicals that don't affect panel per ASTM-D-1308-87(1993)
and ASTM-F-1958-95.
Application : Outdoor /Indoor application
Adhesion : Withstands cross-cut tester without deteriorations per ASTM D3359
Abrasion : Exceeds severe abrasion test per MIL-C-675;
Surface Scratch Hardness : Can withstand more than 9H per ASTM-D3363
Surface Durability : Withstands over 300 million touches without noticeable degradation

Additional Information:


Minimum Order Quantity: 1 Piece(s)

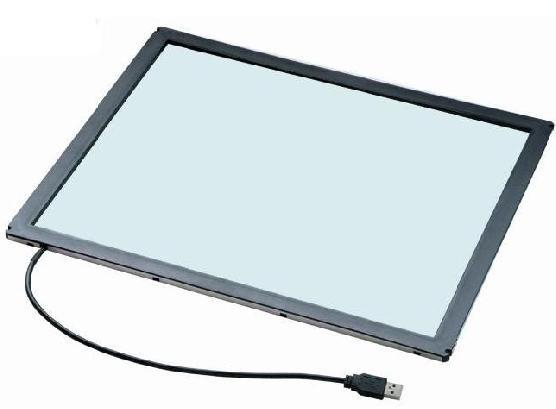

Infrared Touch Screen

Infrared Touch Screen

Applications: Touchscreen kiosk manufacturers India, Touchscreen kiosk suppliers India, Information kiosk manufacturers India, Information kiosk suppliers India, Information kiosk, Self service kiosk, Android kiosk, Transactions kiosk.

Boardroom presentation
Showroom product demonstration
Classroom whiteboard
Command center
Mall kiosks
Public venue directory
Traffic management
Hotel entertainment center
Wheather forecast

Additional Information:


Minimum Order Quantity: 1 Piece(s)

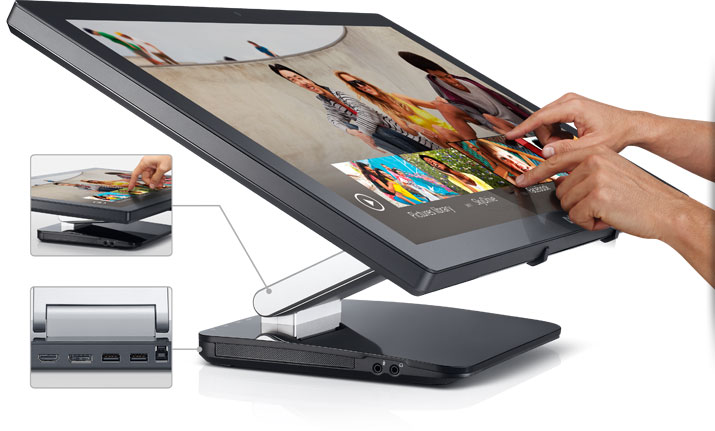

Multi Touch Touch Screen

Multi Touch Touch Screen

Specifications:

32", 40", 42", 46", 50", 52", 55", 57", 60", 65" (Custom sizes available upon request)
Glass : 3 mm tempered glass (Custom versions available upon request)
Frame Color: Piano Black or Black powered coated. (Custom colors available upon request)
Touch Points: Detects up to 32 points simultaneously
Touch Technology: Pentagram LED Cell Imaging
Touch Method: Finger, gloved hand or any other Pointer. Stylus minimum 6mm tip.Object shape recognition (Palm, fist recognitions)
Construction: Aluminum, tempered glass, printed circuit boards Luminous Transmission: Better than 95% with glass
Touch Activation Force: No pressure required
Finger Touch accuracy: ± 1.5 mm
Touch Durability: Unlimited
Touch Response Time: 7 ms - 12 ms

Additional Information:


Minimum Order Quantity: 1 Piece(s)

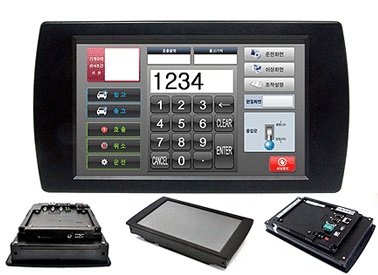

HMI Touchscreen Panel

HMI Touchscreen Panel

We are a professional supplier of all types of HMI unit touchscreen glasses in India.Remarked for our superior quality and on time delivery, we are the proud manufacturer, exporter, wholesaler, trader, retailer, importer, distributor & supplier of  HMI unit touchscreen glasses.  Our provided touch screen is designed & developed by our experienced professionals utilizing the best grade electrical components & modernized technology as per the international standards. Offered touch screen is highly appreciated by our clients for its high transmission rate. Our customers can avail this touch screen from us at nominal rates. Touch Screen KIOSK, Touch Screen Monitor, Touch Screen Panels, Touch Screen Kiosk Suppliers, Kiosk Machine manufacturer and Suppliers - Chennai, Bangalore, Hyderabad, Cochin, India

Additional Information:


Minimum Order Quantity: 1 Piece(s)

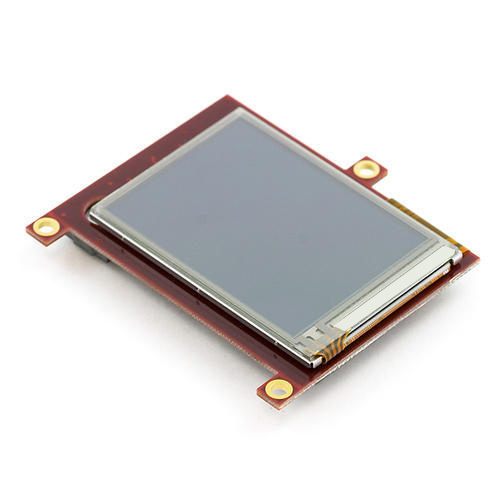

Matrix Touch Screen

Matrix Touch Screen

Specifications:   Touchscreen kiosk manufacturers India, Touchscreen kiosk suppliers India, Information kiosk manufacturers India, Information kiosk suppliers India, Information kiosk, Self service kiosk, Android kiosk, Transactions kiosk.

Additional Information:  Minimum Order Quantity:  1 Piece(s)

General Size15″ to 32″
Fit in withPanel display device
Resolution(Interpolation)4096*4096
Linearity Error<1.5mm
Response Speed<16ms
Frame MaterialM-Series IR Touchscreen with Metal Frame
Input MethodFinger or gloved hand (rubber ,cloth or leather)
Touch TimesUnlimited
Surface DurabilitySurface durability is that of glass, Mohs\' hardness rating of 7
Light Transmission92%
TemperatureOperating Range: -20°C ~ 70°C;
Storage Range: -40°C ~ 85°C
Life TimeAt least 3-4 years
ControllerIntegration inside touch panel

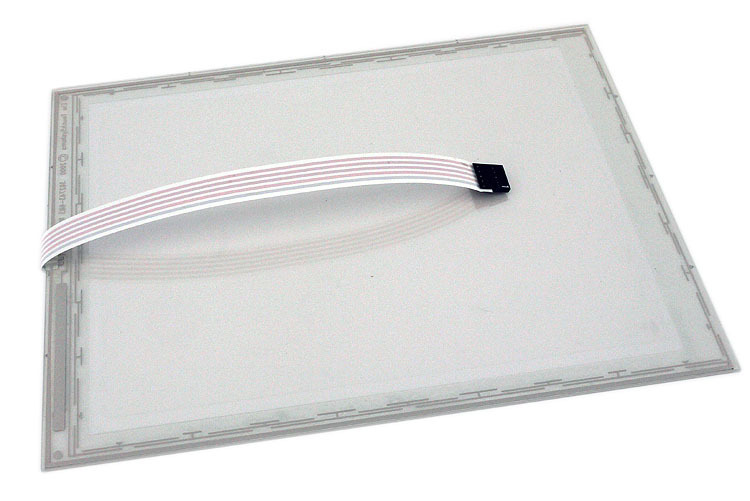

Touch Glass

Touch Glass

Specifications:

Additional Information:  Minimum Order Quantity:  1 Piece(s)

Touch Technology

4-wire Analog Resistive Touch Screen

Material

Top: Hard-coated polyester; Bottom: Glass

Spacer

Invisible (Patented)

Light Transmission

75% nominal

Touch Resolution

2048 x 2048 (with USB-X controller)

Controller

External box / Serial RS232 interface

Platforms

Win XP, 2K, 98, 95, NT, Linux

Power

Self powered / External Power from CPU

Activation Force

50-120 grams per square centimeters

Response Time

10 msec maximum

Position Accuracy

3 mm maximum error

Touch Mode

Click, double click, right click, drag, drop

Operating Temperature

-10 to 70 degrees C

Storage Temperature

-30 to 85 degrees C

Thermal Shock

Pass -20 to 80 degrees C 5 cycles

Relative Humidity

Pass 40 degrees C, 95%RH, 96 hours

Operating Altitude

0 - 4,500 meters

Storage Altitude

0 - 13,500 meters

Abrasion Resistance

3H pencil hardness

Chemical Resistance

Excellent to alcohol, acetone, detergent

Durability

1 Million touches per point minimum.

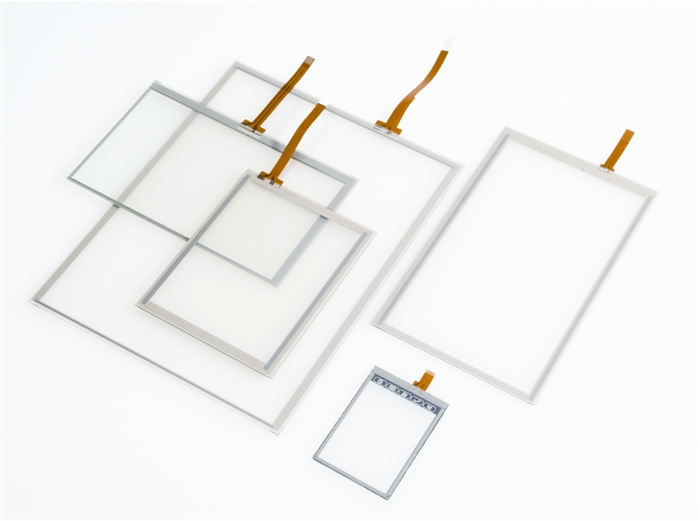

HMI Touch Screen Glass

HMI Touch Screen Glass

Specifications:

Additional Information:  Minimum Order Quantity:  1 Piece(s)

Touch Technology

4-wire Analog Resistive Touch Screen

Material

Top: Hard-coated polyester; Bottom: Glass

Spacer

Invisible (Patented)

Light Transmission

75% nominal

Touch Resolution

2048 x 2048 (with USB-X controller)

Controller

External box / Serial RS232 interface

Platforms

Win XP, 2K, 98, 95, NT, Linux

Power

Self powered / External Power from CPU

Activation Force

50-120 grams per square centimeters

Response Time

10 msec maximum

Position Accuracy

3 mm maximum error

Touch Mode

Click, double click, right click, drag, drop

Operating Temperature

-10 to 70 degrees C

Storage Temperature

-30 to 85 degrees C

Thermal Shock

Pass -20 to 80 degrees C 5 cycles

Relative Humidity

Pass 40 degrees C, 95%RH, 96 hours

Operating Altitude

0 - 4,500 meters

Storage Altitude

0 - 13,500 meters

Abrasion Resistance

3H pencil hardness

Chemical Resistance

Excellent to alcohol, acetone, detergent

Durability

1 Million touches per point minimum.

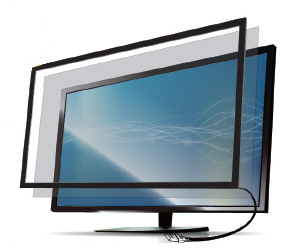

Add On Touch Screen Panel

Add On Touch Screen Panel

Instantly converts any standard monitor (LCD & CRT) or notebook computer into a touch-interactive device at a very affordable cost. Easy installation and maintenance. Compatible with WIN 98 up to Win 7 & 8, Linux, & Mac 9.22-10.x.
.
Measure your monitor size and compare to the sizes of the touch screens. Compare monitor's  view area   (VW x VH) with the  active area  of the touch screen. It is ok if the touch screen's active area is slightly larger than the monitor's view area.  Touchscreen kiosk manufacturers India, Touchscreen kiosk suppliers India, Information kiosk manufacturers India, Information kiosk suppliers India, Information kiosk, Self service kiosk, Android kiosk, Transactions kiosk.

Additional Information:


Minimum Order Quantity: 1 Piece(s)

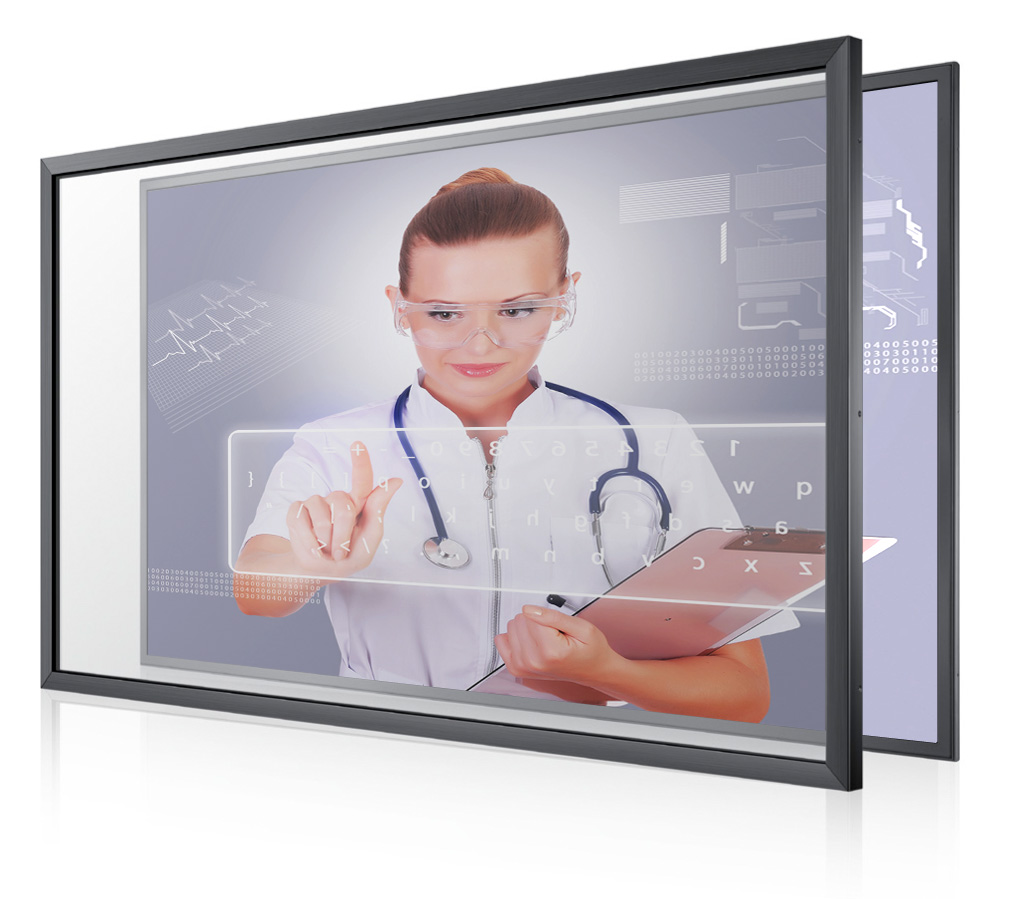

Touch Panel

Touch Panel

Our comprehensive range of touch Panels are based on latest technology for ‘lightweight’ user interfaces such as in Windows CE® Limelight Wall/PC. . With touch Panel technology set points and other parameters can be easily changed. Our touch panels find its uses in air handlers & chiller plants, control lighting, arm security and alarm functions and in many more areas. Touch Screen KIOSK, Touch Screen Monitor, Touch Screen Panels, Touch Screen Kiosk Suppliers, Kiosk Machine manufacturer and Suppliers - Chennai, Bangalore, Hyderabad, Cochin, India

Additional Information:


Minimum Order Quantity:  1 Piece(s)


Touch Panel

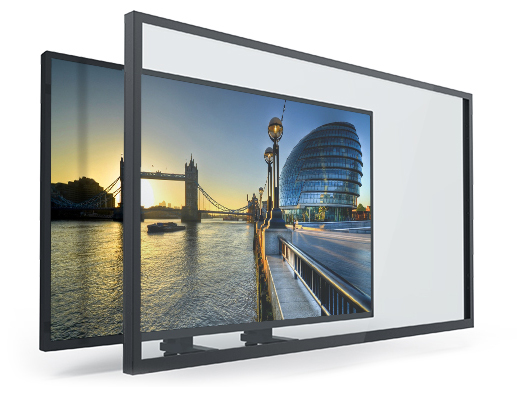

Touch Screen Overlay

Touch Screen Overlay (IR) function defines diverse of hand gestures to input your commands, which equals to a mouse. With one finger touch or dragging on screen surface can accomplish click, dragging or draw-line. Two fingers moving together on screen can zoom in/out. The gesture one finger anchored and the other moving around can lead to a 3D rotating. Multi-touch touchscreen has all the advantages of traditional single-touch touchscreen: reliable, stable, super sensitive and drift-free, and can support Windows 7,8 operating system.


Applications:

Boardroom presentation
Showroom product demonstration
Classroom whiteboard
Command center
Mall kiosks
Public venue directory
Traffic management
Hotel entertainment center
Wheather forecast

Minimum Order Quantity: 1 Piece(s)
